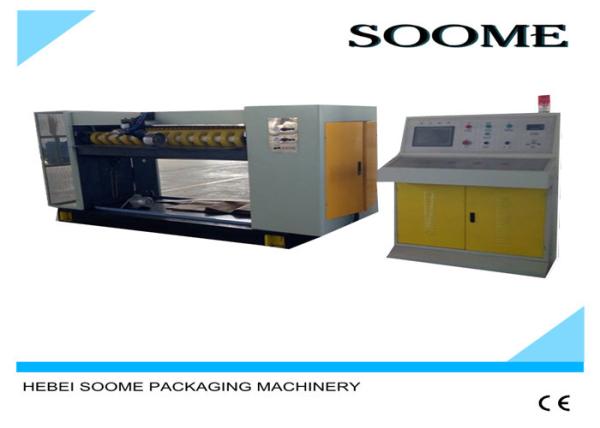

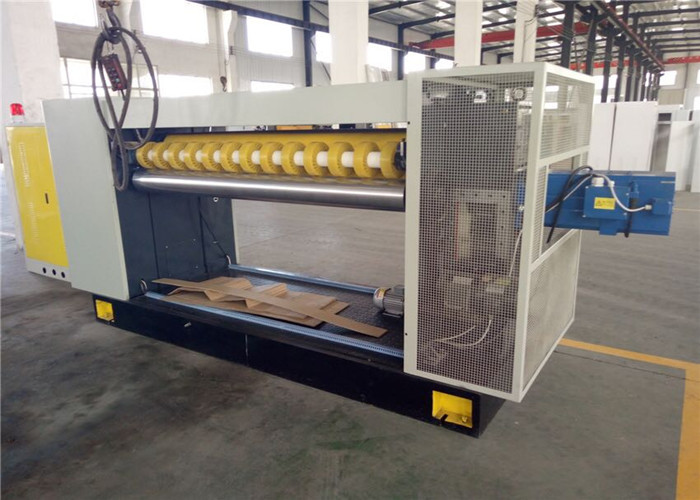

SS 304 Corrugated Board Cutting Machine , Auto Rotary Die Cutting Equipment
Summarize
The cutting off machine belongs to the carton processing machine. The cutting off machine in the corrugated board production line is a mechanical equipment for cutting the finished product of the cardboard. Its technical performance and equipment adjustment condition directly affect the precision of the cut size of the finished paper, the rupture of the pressing line and the smooth and beautiful appearance of the cut.The cutting off machine is one of the important single machines in corrugated board production line. The transverse cutting machine is divided into mechanical transverse cutting machine and computer controlled crosscutting machine because of different transmission control modes. The computer cutting off machine is controlled by the industrial control computer. According to the set length, the cutter shaft is controlled to cut off the cardboard, and the precision transmission of the mechanical part can be controlled in the range of + 1mm. The computer controlled cutting off machine has a spiral cutter cross cutting machine and a straight knife cross cutting machine. The spiral cutter cutting off machine is more suitable for high-speed cutting of thick cardboard, and the paper cutting is stable, and the blade life is long.
Detail
1. Working width :1600mm/1800mm/2000mm/2200mm.
2. Design speed : 200m/min
3. Total power : 14.75KW
4. Features: AC servo motor , servo motor drive German Bryant , Kunlun too 10 inches color touch screen display.
5. Cutter shaft diameter : 200mm
6. Cutting length 400mm-9999mm, cutting accuracy : ± 1mm ( uniform )
7. For single mode: manual or automatic , can store 200 groups of orders
8. Spiral inlaid front tooth hacksaw blade
9. Transmission gear using 40Cr quenched after tooth surface hardened and ground , tight with the installation , the side chain using spray lubrication.
10. Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
